Technical Specifications

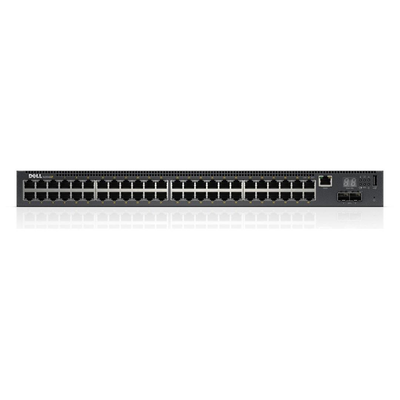

Product: Dell PowerConnect N2048P

Switch type: Managed

Switch layer: L2+

Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000)

Basic switching RJ-45 Ethernet ports quantity: 48

USB 2.0 ports quantity: 1

Console port: RJ-45

MAC address table: 8192 entries

Switching capacity: 220 Gbit/s

Networking standards: IEEE 802.1ab,IEEE 802.1D,IEEE 802.1p,IEEE 802.1Q,IEEE 802.1s,IEEE 802.1v,IEEE 802.1w,IEEE.... Power over Ethernet (PoE)

Rack mounting Form factor: 1U

Features & Design

Modernize campus networks with PoE+ capable GbE Layer 3 Standard switches that support multi-chassis link aggregation (MLAG) and 12-unit stacking.

Media

1:38

Upgrade your network

N-Series is a family of energy-efficient and cost-effective 1GbE and 10GbE switches designed for modernizing and scaling network infrastructure. The Dell Networking N2000 Series offers enhanced, high-availability Layer 3 Standard Ethernet switches with basic routing functionality that:


• Use MLAG for multipath loop-free redundancy without spanning tree to enable full-bandwidth utilization and high availability
• Promote greater interoperability through interfaces with Cisco's Rapid Per VLAN Spanning Tree (RPVST+) and devices using Cisco Discovery Protocol (CDP)
• Offer a more flexible choice in your network by uniting products with the latest open standard protocols
• Feature Layer 3 IPv4 and IPv6 functionality, including static routing and Routing Information Protocol (RIP version 1 & 2) support for up to 256 interfaces

Deliver clean power to network devices with PoE+ support

The Dell Networking N2000 Series has options for up to 48 ports of Power-over-Ethernet Plus (PoE+). This allows you to attach devices with high power requirements (up to 30.8 watts) without running a separate power cable. PoE+ is particularly useful in older buildings where installing power to multiple, widespread locations can be prohibitively expensive.

Designed for efficiency

Built to help keep operating costs down, the N2000 Series can operate at temperatures up to 113°F (45°C) to help reduce cooling costs. Features designed to improve overall efficiency include:

•  80PLUS-certified efficient integrated power supply
•  Redundant variable-speed cooling fans
•  Energy-Efficient Ethernet and low-power PHYs to help reduce power to inactive ports and idle links

Advanced feature set to simplify management

The Dell Networking N2000 Series is designed for easy deployment, outstanding interoperability and a low learning curve for network administrators. A single OS release (Dell Networking OS 6) allows you to maintain consistent configurations across all N-Series products with a comprehensive feature set that includes:

• One common command line interface (CLI) and graphical user interface (GUI) that use a well-known command language to help skilled network administrators become productive quickly
• USB auto-configuration that helps network administrators rapidly deploy mirrored configurations to numerous devices by simply inserting a USB key
• A variety of enterprise-class features with familiar and intuitive configuration and management commands
• The latest open-standard protocols and smart integration technologies to help make smoothly operating multi-vendor networks possible

Deploy with confidence at any scale

With high throughput and capacity to handle unexpected workloads, the N2000 Series switches are ideal solutions for fast growing GbE networks that require high-density aggregation with seamless redundancy and availability.

• Data rates up to 220Gbps (full duplex) and a forwarding rate of up to 164Mpps
• Built-in stacking ports and standard N-Series stacking cables support a stacking architecture up to 12 units at 84Gbps
• Switch stacks up to 600 1GbE ports can be managed from a single screen or IP address
