Technical Specifications

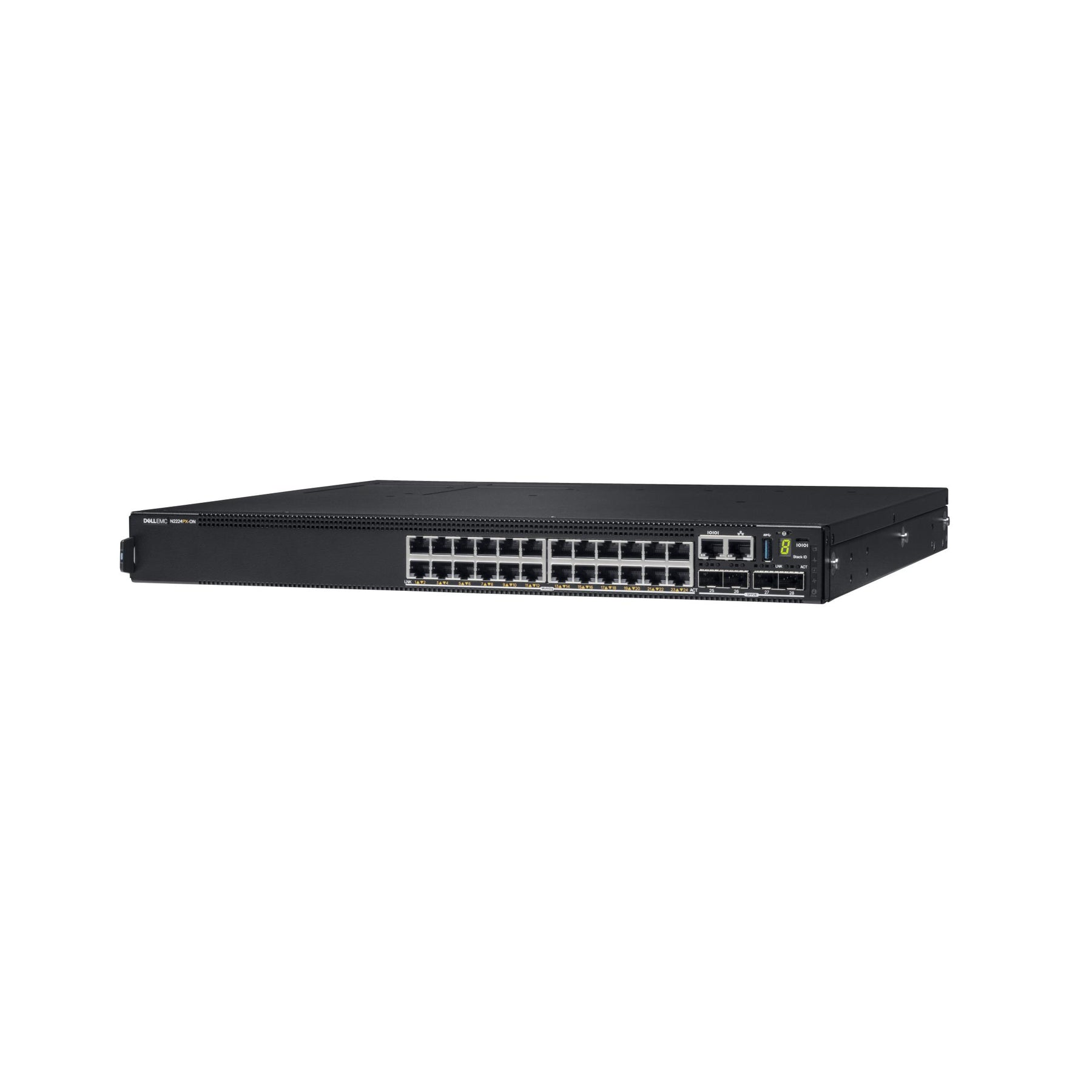

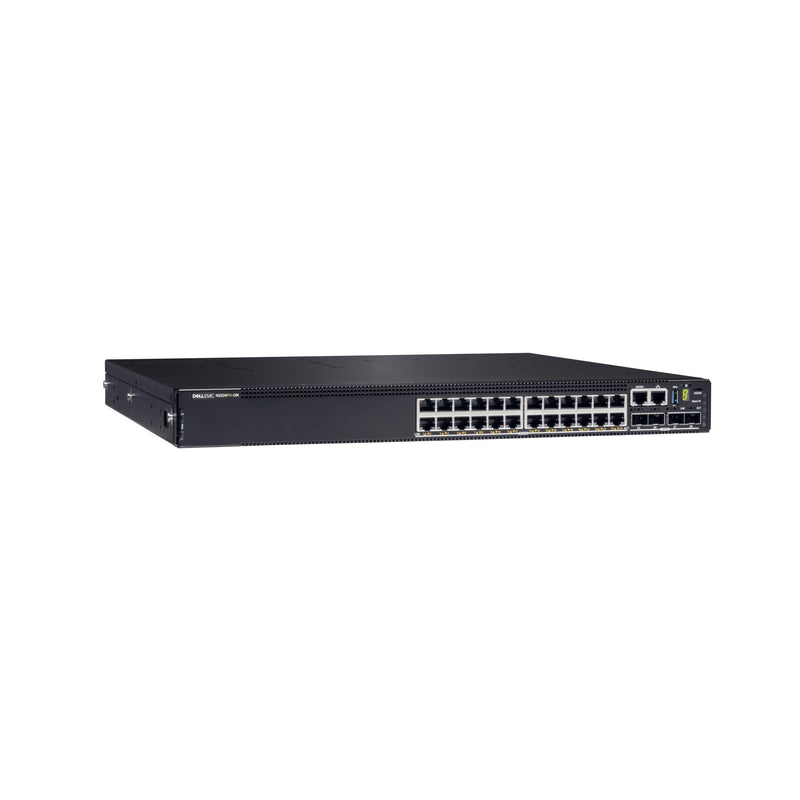

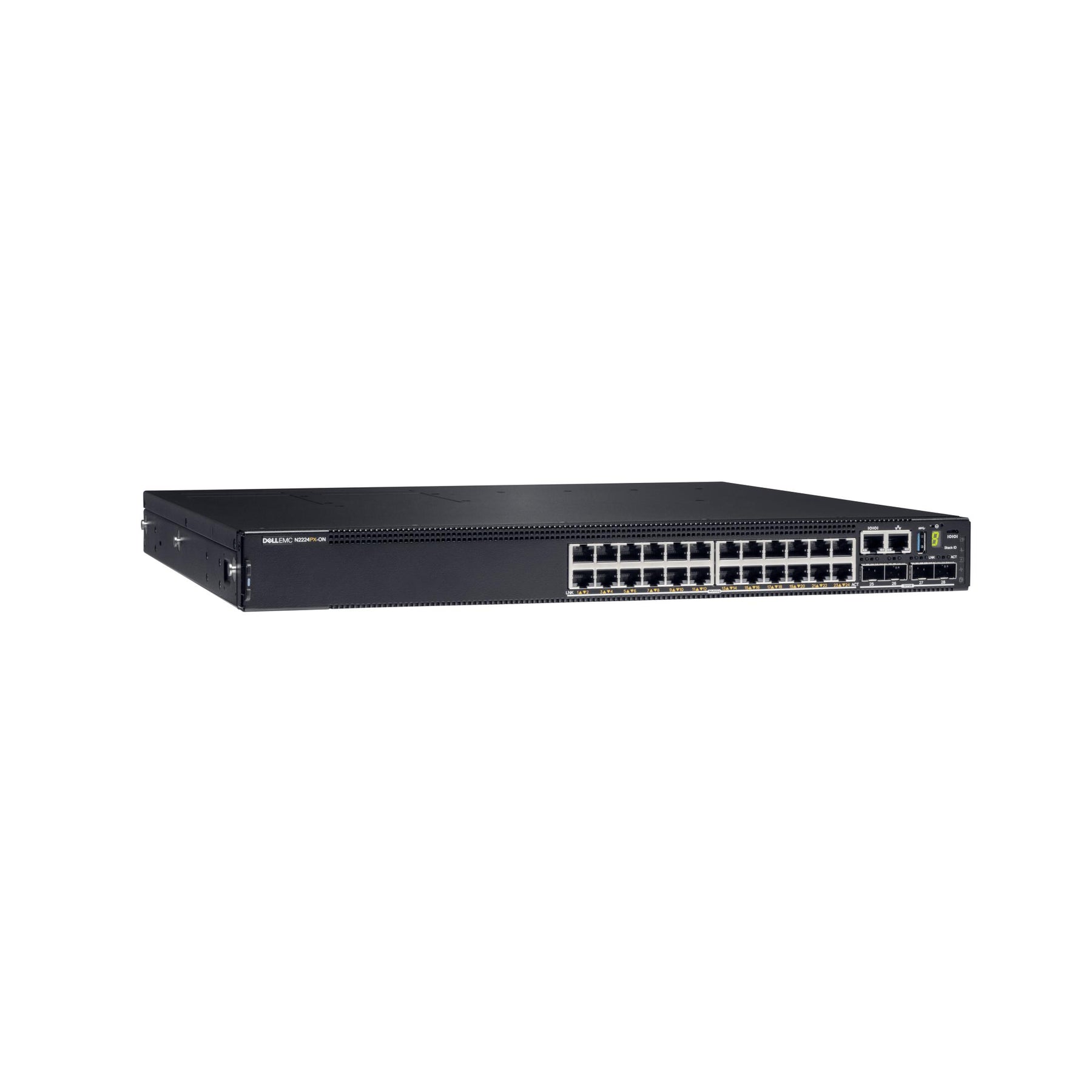

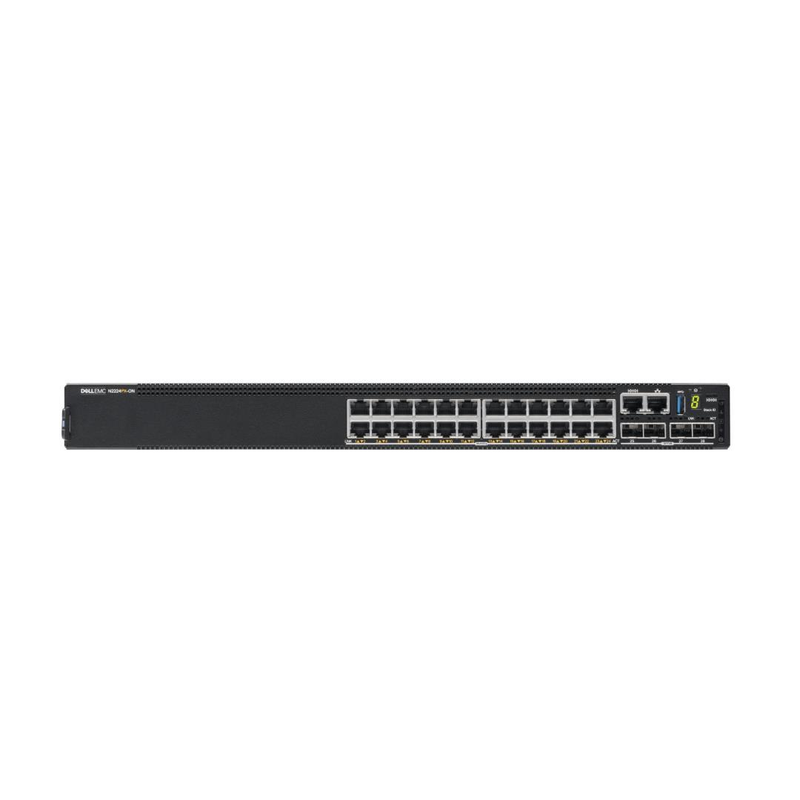

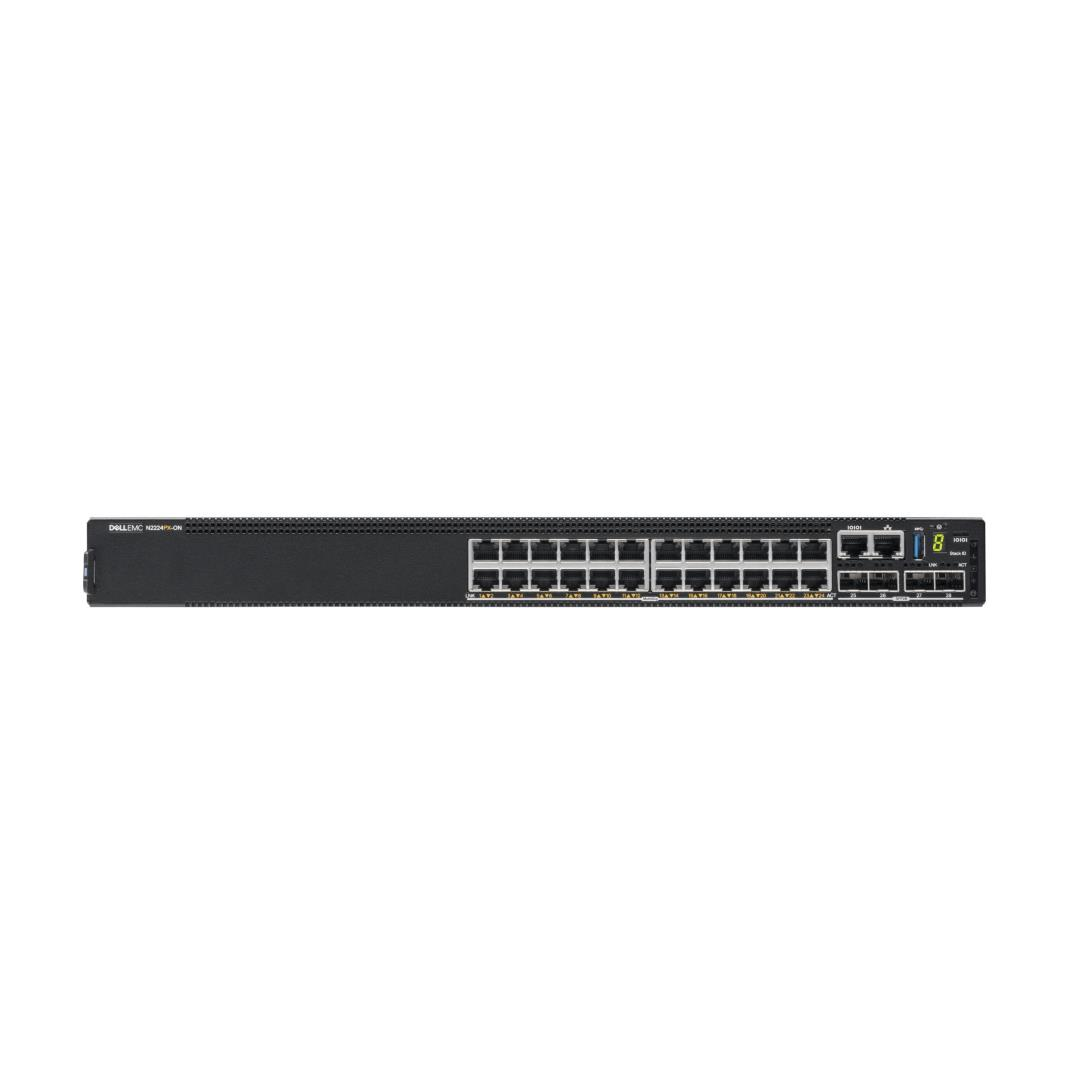

Product: Dell N2224PX-ON

Switch type: Managed

Switch layer: L3

Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000)

Basic switching RJ-45 Ethernet ports quantity: 24

Installed SFP modules quantity: 4

USB 2.0 ports quantity: 1 Full duplex

MAC address table: 32000 entries

Switching capacity: 160 Gbit/s

Networking standards: IEEE 802.3at,IEEE 802.3bt. Power over Ethernet (PoE)

Rack mounting Form factor: 1U

Features & Design

Purpose-built 24 and 48 port Multi-Gig and Multi-Gig 60W PoE access switches

• Greater Power Over Ethernet capabilities – enable customers to run larger number of powered devices (video surveillance cameras, building automation, lighting, telephone systems and the like) off of the power that our switches provide.

• Greater choice of Network Operating Systems (OS6, Cumulus, Pica8) from leaders in Open Technologies that provide robust connectivity each with its unique strengths.

• Newest silicon capabilities, increased downlink bandwidth (2.5GbE), increased uplink bandwidth (25GbE), increased stacking bandwidth (160Gbps).

Enhance employee productivity with better connectivity

• Modernize existing campus networks to handle modern workloads

• Facilitate Workforce Transformation and enhance employee productivity with immersive, bandwidth intensive applications

• Realize the many benefits of IoT and automation with enhanced PoE capabilities that newer Dell EMC PowerSwitch N series deliver

Dell EMC PowerSwitch N2224PX-ON

Latest generation 2.5GbE Campus Access Switches with full scale 2.5GbE MultiGig on all ports and 802.3bt Type-3 (60W) PoE on subset of ports

• N2224PX-ON - 1RU, 24x1/2.5GbE RJ-45 with 802.3bt Type-3 (60W) PoE on 12 ports and 802.3at (30W) PoE on 12 ports
• 160Gbps Stacking with up to 12 members
• 25GbE Uplinks to aggregation
• Powers and backhauls data from 802.11ac Wave 2, 802.11ax WLAN deployments and 802.3bt Type-3 high power PoE applications requiring up to 60W per port.
• Ideal for Mid to Large Enterprise Campus networks, Retail deployments requiring support for a range of PoE devices

Dell EMC PowerSwitch N2248PX-ON

Latest generation 2.5GbE Campus Access Switches with full scale 2.5GbE MultiGig on all ports and 802.3bt Type-3 (60W) PoE on subset of ports

• N2248PX-ON - 1RU, 48x1/2.5GbE RJ-45 with 802.3bt Type-3 (60W) PoE on 24 ports and 802.3at (30W) PoE on 24 ports
• x86 platform based on Broadcom Hurricane 3 MG chipset
• 160Gbps Stacking with up to 12 members
• 25GbE Uplinks to aggregation
• 802.11ac Wave 2 WLAN deployments and 802.3bt Type-3 high power PoE applications requiring up to 60W per port.
• Ideal for Mid to Large Enterprise Campus networks, Retail deployments requiring support for a range of PoE devices
