Dell PowerEdge R570 Xeon 6511P 32GB RAM 1.92TB SSD 2x 1000W 2U Rack Server
Important Notice: This product has multiple configuration options. Product specifications may vary. Please chat with one of our friendly sales consultants before you purchase. While we do our best to ensure accuracy, sometimes there might be slight differences between our listings and the actual product specs. Thanks for your consideration.
Technical Specifications
| Specification | Details |
|---|---|
| Product | Dell PowerEdge R570 |
| Product Type | Rack Server |
| Form Factor | 2U |
| Processor Family | Intel Xeon 6 Performance |
| Processor Model | 6511P |
| Processor Frequency | 2.3 GHz / Up to 4.2 GHz (72 MB Cache, 16 Cores, 32 Threads) |
| Processors Installed | 1 |
| Maximum Processor Support | 1 |
| Internal Memory | 32 GB 6400 MHz (1 x 32 GB, Dual Rank) |
| Internal Memory Type | Registered ECC DDR5 RDIMM |
| Memory Configuration | Performance Optimised |
| Memory Slots | 16 DIMM slots |
| Max Memory | Up to 4 TB RDIMM with supported Intel Xeon 6 P-core processor; up to 1 TB with supported E-core processor |
| Total Storage Capacity | 1.92 TB |
| Installed Storage | 2 x 960 GB SATA 6 Gbps Read-Intensive 512e 2.5-inch Hot-Plug SSDs in 3.5-inch Hybrid Carriers, 1 DWPD |
| Storage Media | SSD |
| Drive Bays | 3.5-inch chassis supporting up to 12 SAS4 / SATA drives |
| Storage Controller | Dell PERC H965i Adapter, Full Height |
| RAID Configuration | Unconfigured RAID |
| Boot Mode | UEFI BIOS Boot Mode with GPT Partition |
| BIOS Profile | Power Saving BIOS Settings |
| Expansion Slots | Riser Configuration 10: rear full-height 1 x16, onboard OCP 1 x16, FLOP OCP 1 x16 and 3 x16 full-height Gen5 slots |
| Platform Expansion Support | Up to 6 PCIe slots with x16 connectors, depending on riser and chassis configuration |
| Network Adapter | Intel Ethernet E610-XAT2 Dual-Port 10GbE BASE-T OCP 3.0 NIC +Sec |
| Network Connectivity | 2 x 10GbE RJ-45 ports; dedicated 1GbE BMC management Ethernet port |
| Embedded Management | iDRAC10 Enterprise 17G, iDRAC Direct, iDRAC RESTful API with Redfish, RACADM CLI and iDRAC Service Module |
| Management Software | Dell Connectivity Client Enabled; Dell Connectivity Module 17G |
| Security | Secure Enterprise Key Manager 3.0, Secured Component Verification, cryptographically signed firmware, Secure Boot, Secure Erase, Silicon Root of Trust, System Lockdown and chassis intrusion detection |
| Security Chip | TPM 2.0 FIPS, CC-TCG certified platform support |
| Operating System Installed | Not included (Optional) |
| Supported Operating Systems | Canonical Ubuntu Server LTS, Microsoft Windows Server with Hyper-V, Red Hat Enterprise Linux, SUSE Linux Enterprise Server and VMware ESXi |
| Cooling | Air Cooling; PowerEdge 2U High Performance Gold Fan |
| Power Supply | Dual 1100 W Titanium Hot-Plug MHS Power Supplies, 100-240 VAC, 1+1 Redundant |
| Power Cords | 2 x C13 1.8 m 250 V 10 A European Power Cords |

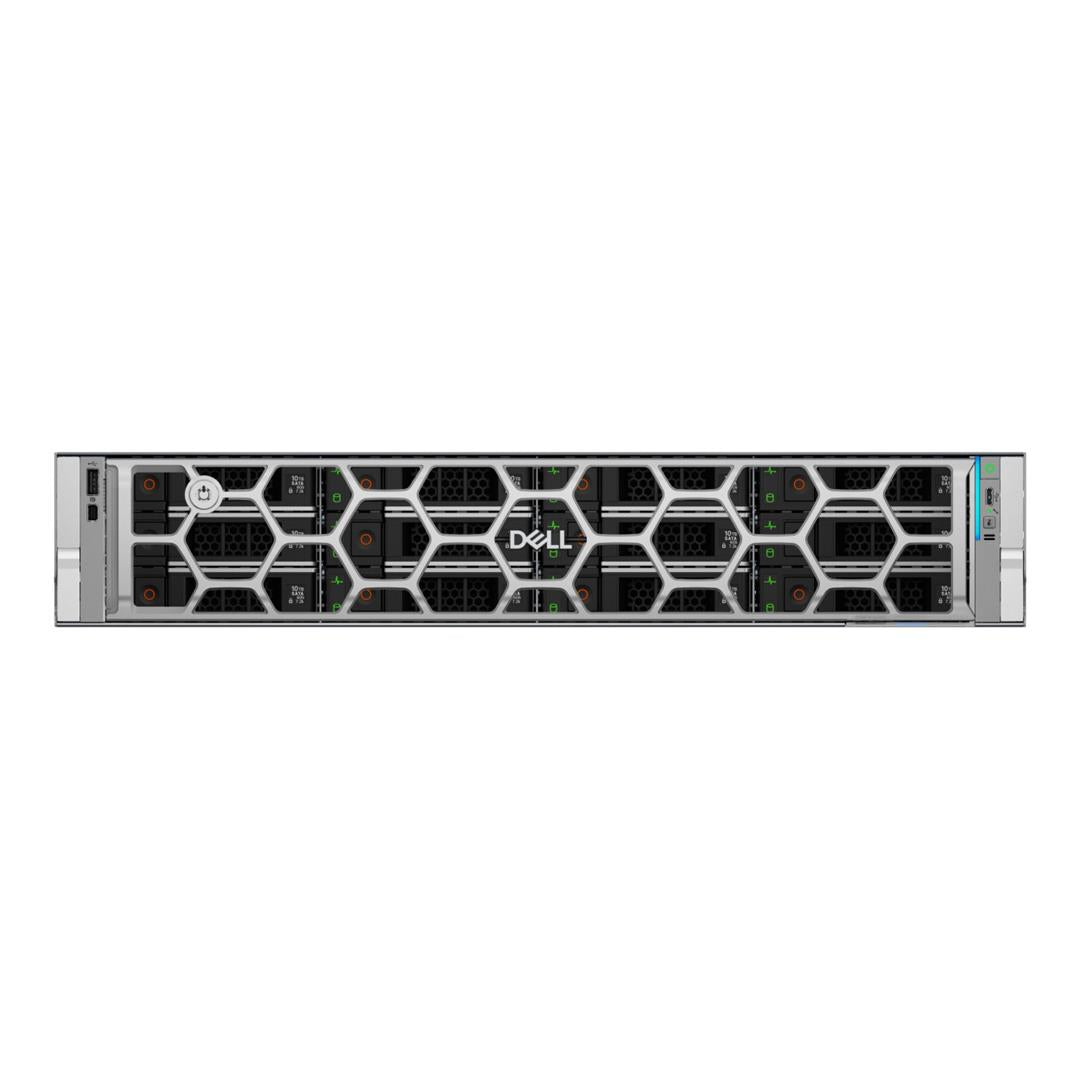

| Front Bezel | PowerEdge 2U Standard Bezel |
| Rack Rails | 2U Combination Drop-In / Stab-In Rails (B22) |
| Base Warranty | 3-years Basic Next Business Day |
| Included Upgrade | 3-years ProSupport and Next Business Day Onsite Service |
| Front Ports | 1 x USB 2.0 Type-C (Host / BMC Direct) 1 x USB 2.0 Type-A (optional LCP secondary KVM) 1 x Mini DisplayPort (optional LCP secondary KVM) 1 x DB9 Serial (with front I/O configuration) 1 x Dedicated BMC Ethernet port (with front I/O configuration) |

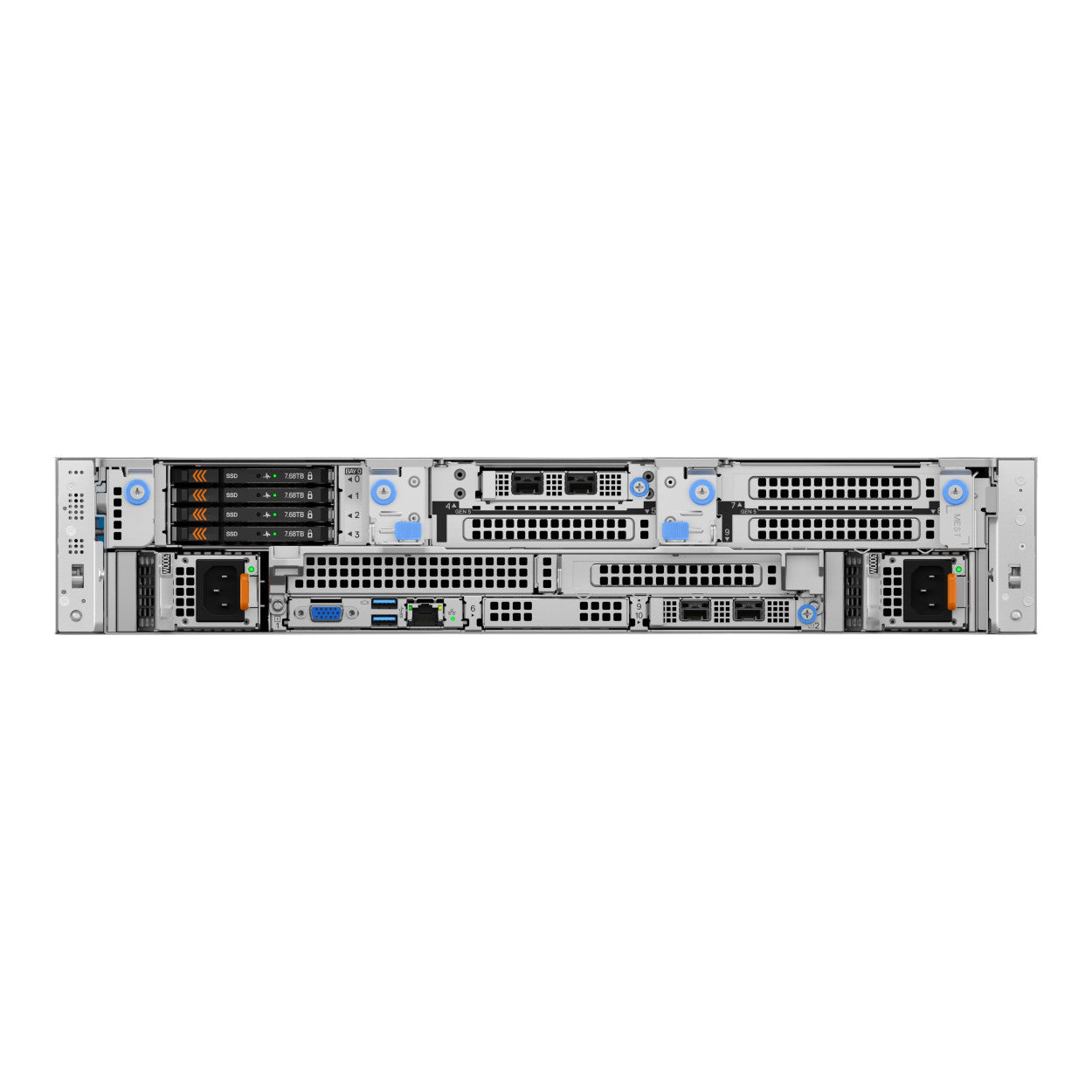

| Rear Ports | 1 x Dedicated BMC Ethernet port 2 x USB 3.1 Type-A ports 1 x VGA port 2 x 10GbE BASE-T RJ-45 network ports via installed OCP 3.0 adapter |
| Internal Ports | 1 x USB 3.1 Type-A port |
- Specifications and Images may vary depending upon region / model.
Key Features
- 2U, single-socket Dell PowerEdge rack server
- Intel Xeon 6 Performance 6511P processor with 16 cores and 32 threads
- 2.3 GHz base frequency and up to 4.2 GHz maximum turbo frequency
- 32 GB 6400 MT/s registered ECC DDR5 memory
- 2 x 960 GB enterprise SATA read-intensive hot-plug SSDs
- Dell PERC H965i full-height hardware RAID controller
- Intel Ethernet E610-XAT2 dual-port 10GbE BASE-T OCP 3.0 adapter
- iDRAC10 Enterprise for secure remote server administration
- Dual 1100 W Titanium hot-plug power supplies with 1+1 redundancy
- 2U combination drop-in/stab-in rack rails included
- 3-year ProSupport with Next Business Day Onsite Service
Features
The Dell PowerEdge R570 is a scalable and power-efficient 2U, single-socket rack server designed for virtualisation, database, analytics, file services and general-purpose data-centre workloads. This configured system combines a 16-core Intel Xeon 6 Performance 6511P processor with 32 GB registered ECC DDR5 memory, dual 960 GB enterprise SATA solid-state drives, a PERC H965i hardware RAID controller and dual-port 10GbE networking.
Enterprise management and security features include iDRAC10 Enterprise, Dell Connectivity Client, Secure Enterprise Key Manager 3.0 and Secured Component Verification. Dual 1100 W Titanium hot-plug power supplies provide 1+1 redundancy, while the included 2U combination rails simplify rack installation.
Built for Scalable Enterprise Workloads
PowerEdge R570 provides a balanced platform for organisations consolidating infrastructure or deploying modern business applications. Its Intel Xeon 6 architecture, ECC DDR5 memory, enterprise storage controller and Gen5 PCIe expansion capability support dependable performance today while leaving room for future memory, storage, networking and accelerator upgrades.
Enterprise-Class Storage and RAID
The configured 3.5-inch chassis supports up to 12 SAS or SATA drives and is supplied with two 960 GB SATA read-intensive SSDs in 3.5-inch hybrid carriers. The PERC H965i hardware controller provides enterprise RAID functionality; this specific configuration is supplied with RAID left unconfigured so that the required storage policy can be applied during deployment.
Secure Remote Management
iDRAC10 Enterprise enables secure out-of-band monitoring, configuration and lifecycle management. Dell Connectivity Client and the Dell Connectivity Module support proactive service connectivity, while Secure Enterprise Key Manager 3.0 and Secured Component Verification strengthen platform security and supply-chain assurance.
