Dell PowerEdge R760xs Xeon Silver 4510 32GB RAM 2.4TB SAS 2x 700W 2U Rack Server
Important Notice: This product has multiple configuration options. Product specifications may vary. Please chat with one of our friendly sales consultants before you purchase. While we do our best to ensure accuracy, sometimes there might be slight differences between our listings and the actual product specs. Thanks for your consideration.
Technical Specifications
| Specification | Details |
|---|---|
| Product | Dell PowerEdge R760xs |
| Product Type | Rack Server |
| Form Factor | 2U |
| Processor Family | 5th Generation Intel Xeon Scalable |
| Processor Model | Intel Xeon Silver 4510 |
| Processor Frequency | 2.4 GHz / Up to 4.1 GHz (30 MB Cache, 12 Cores, 24 Threads) |
| Processors Installed | 1 |
| Maximum Processor Support | 2 |
| Internal Memory | 32 GB 6400 MHz (1 x 32 GB, Dual Rank) |
| Internal Memory Type | ECC DDR5 RDIMM |
| Memory Slots | 16 DIMM Slots |
| Max Memory | 1.5 TB |
| Total Storage Capacity | 2.4 TB |
| Storage Media | HDD |
| Installed Storage | 1 x 2.4 TB 10K RPM 12Gbps SAS ISE 512e 2.5-inch Hot-Plug HDD with 3.5-inch Hybrid Carrier |
| Drive Bays | Up to 12 x 3.5-inch SAS/SATA Hot-Plug Drives |
| Storage Controller | Dell PERC H755 Adapter, Low Profile |
| RAID Support | Hardware RAID supported through PERC H755 |
| Boot Mode | UEFI BIOS Boot Mode with GPT Partition |
| Expansion Slots | 1 x PCIe x16 and 1 x PCIe x8 slot configuration for single-processor system |
| Network Controller | Broadcom 5720 Dual-Port 1GbE Onboard LOM and Broadcom 5719 Quad-Port 1GbE BASE-T PCIe Adapter |
| Network Connectivity | 6 x 1GbE BASE-T ports, plus dedicated iDRAC management port |
| OCP NIC | Not Included |
| Embedded Management | iDRAC9 Enterprise, Dell Connectivity Client and Dell Connectivity Module |
| Security Chip | Trusted Platform Module 2.0 V6 |
| Security Features | Secure Boot, Silicon Root of Trust, cryptographically signed firmware and chassis intrusion support |
| Operating System Installed | Not included (Optional) |
| Cooling | 5 x High-Performance Fans |
| Power Supply | Dual (1+1) 700 W Hot-Plug Redundant Titanium Power Supplies, 200–240 V AC |
| Bezel | PowerEdge 2U Standard Bezel Included |
| Rails | ReadyRails Sliding Rails Included, without Cable Management Arm |
| Base Warranty | 3-years Basic Next Business Day |
| Included Upgrade | 3-years ProSupport and Next Business Day Onsite Service |
| Front Ports | USB ports and system control panel connections vary by selected front chassis configuration |

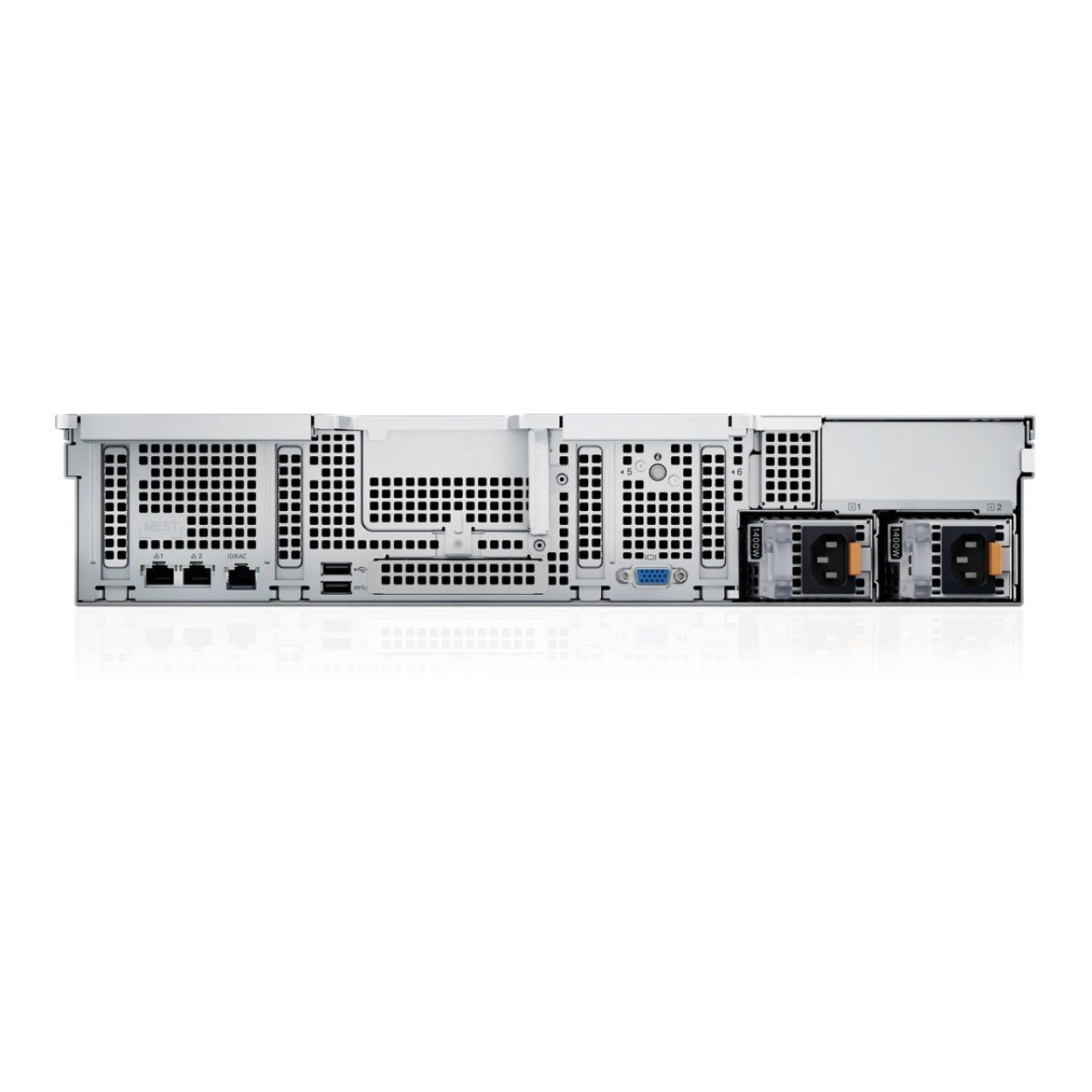

| Rear Ports | 6 x 1GbE BASE-T 1 x Dedicated iDRAC Management Port USB Ports VGA Port |
| Internal Ports | Internal USB support |
- Specifications and Images may vary depending upon region / model.
Key Features
- 2U rack server engineered for balanced compute and flexible storage
- Intel Xeon Silver 4510 processor with 12 cores and 24 threads
- 32 GB 6400 MHz ECC DDR5 RDIMM memory
- 2.4 TB 10K RPM enterprise SAS hot-plug hard drive
- 12 x 3.5-inch SAS/SATA drive chassis
- Dell PERC H755 low-profile hardware RAID controller
- Six 1GbE BASE-T network ports through integrated and add-in Broadcom adapters
- iDRAC9 Enterprise for secure remote server administration
- Dual 700 W hot-plug redundant Titanium power supplies
- ReadyRails sliding rails and standard front bezel included
- 3-years ProSupport and Next Business Day Onsite Service
Features
Powerful, Right-Sized Performance for Core IT Workloads
The Dell PowerEdge R760xs is a purpose-built 2U rack server designed to provide a balanced combination of compute performance, storage flexibility and enterprise manageability. This Smart Selection configuration is powered by a 5th Generation Intel Xeon Silver 4510 processor, 32 GB of ECC DDR5 registered memory and a 2.4 TB enterprise SAS hard drive.
With a 12-bay 3.5-inch chassis, PERC H755 hardware RAID controller, six integrated 1GbE network ports and iDRAC9 Enterprise remote management, the PowerEdge R760xs is well suited to virtualisation, software-defined storage, medium-density virtual machine environments and general business applications.
Balanced Compute for Popular Applications
The Intel Xeon Silver 4510 processor provides 12 cores, 24 threads, a 2.4 GHz base frequency and 30 MB cache. Hyper-Threading and Intel Turbo Boost Technology help the server respond efficiently to changing workload demands, while the single-processor configuration leaves the platform focused on cost-effective, right-sized deployment.
Enterprise Storage and RAID
The system includes a 2.4 TB 10K RPM 12Gbps SAS hot-plug hard drive installed in a hybrid 3.5-inch carrier. A Dell PERC H755 low-profile controller provides enterprise hardware RAID capability, while the 12-bay 3.5-inch chassis supports future storage expansion within the selected backplane configuration.
Integrated Management and Security
iDRAC9 Enterprise enables secure remote monitoring, deployment and lifecycle administration. The system also includes TPM 2.0, UEFI Secure Boot support, Silicon Root of Trust and cryptographically signed firmware capabilities to help protect the server throughout its operational lifecycle.
Network Connectivity
A Broadcom 5720 dual-port 1GbE onboard adapter and Broadcom 5719 quad-port 1GbE PCIe adapter provide a total of six 1GbE BASE-T network ports. A dedicated iDRAC management connection allows server administration traffic to remain separate from production network traffic.
