Dell PowerEdge T160 Xeon 6315P 16GB RAM 2TB HDD 300W 3U Tower Server
Important Notice: This product has multiple configuration options. Product specifications may vary. Please chat with one of our friendly sales consultants before you purchase. While we do our best to ensure accuracy, sometimes there might be slight differences between our listings and the actual product specs. Thanks for your consideration.
Technical Specifications
| Specification | Details |
|---|---|
| Product | Dell PowerEdge T160 |
| Product Type | Tower Server |
| Form Factor | 3U |
| Processor Family | Intel Xeon 6 Performance |
| Processor Model | 6315P |
| Processor Frequency | 2.8 GHz / Up to 4.7 GHz (12 MB Cache, 4 Cores, 4 Threads) |
| Processors Installed | 1 |
| Maximum Processor Support | 1 |
| Internal Memory | 16 GB 5600 MHz (1 x 16 GB) |
| Internal Memory Type | ECC DDR5 UDIMM |
| Memory Slots | 4 x DDR5 DIMM slots (Upgradable) |
| Max Memory | 128 GB |
| Total Storage Capacity | 2 TB |
| Storage Media | HDD |
| Installed Storage | 1 x 2 TB 3.5-inch SATA 6Gbps 7,200 RPM 512n HDD |
| Drive Bays | 3 x 3.5-inch cabled SATA drive bays and 2 x 2.5-inch cabled SATA drive bays |
| Max Storage Support | Up to 63.36 TB, depending on drive configuration |
| Storage Controller | Embedded SATA, no dedicated RAID controller |
| RAID Support | No RAID configured |
| Expansion Slots | 2 x PCIe slots: 1 x PCIe x8 slot with x4 bandwidth and 1 x PCIe x16 slot with x16 bandwidth, both half-height and half-length |
| Networking | Broadcom 5720 dual-port 1GbE onboard LOM |
| Embedded Management | iDRAC9 Enterprise |
| Security | Secured Component Verification, cryptographically signed firmware, Secure Boot, Secure Erase, Silicon Root of Trust and System Lockdown support |
| Security Chip | Trusted Platform Module 2.0 V6 |
| Operating System Installed | Not included (Optional) |
| Cooling | Heatsink for processors rated at 80 W or less, with PCIe fan |
| Power Supply | 300 W cabled power supply |
| Bezel | Filter bezel supported |
| Weight | Up to 11.64 kg |
| Base Warranty | 3-years Basic Next Business Day |
| Included Upgrade | None |

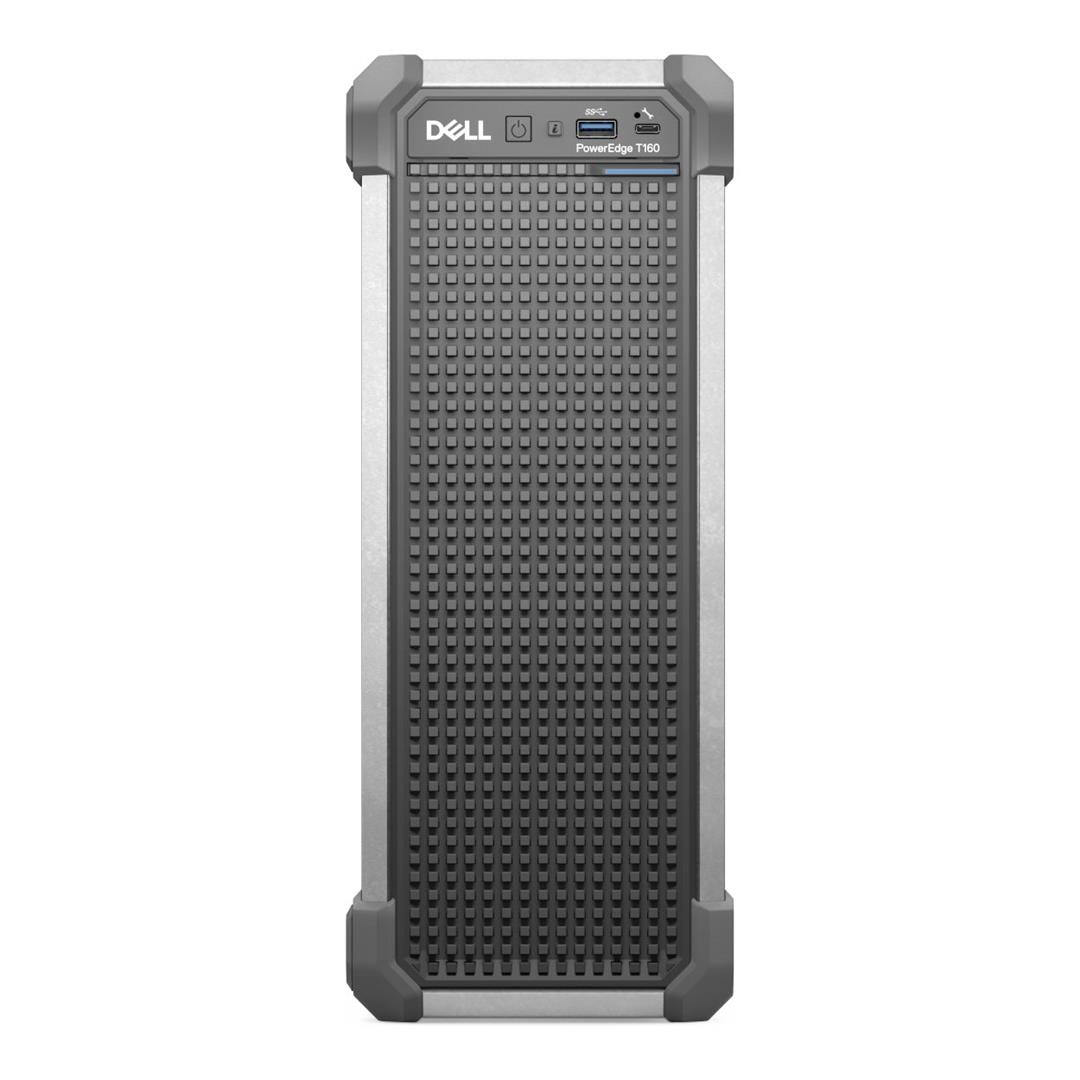

| Front Ports | 1 x iDRAC Direct Micro-AB USB port 1 x USB 3.2 Gen 1 port |

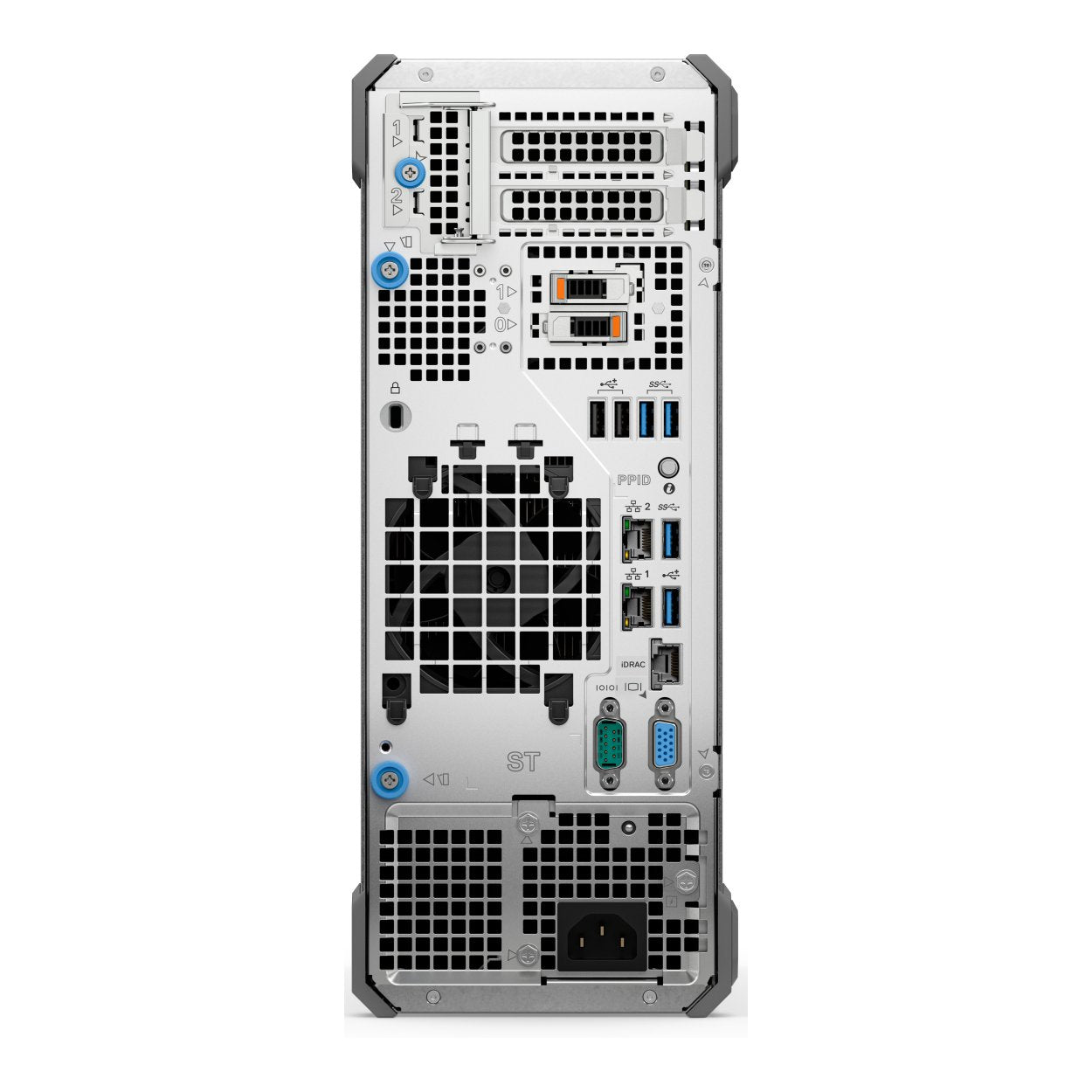

| Rear Ports | 1 x Dedicated iDRAC RJ-45 port 3 x USB 2.0 ports 3 x USB 3.2 Gen 1 ports 1 x Serial port 1 x VGA port 2 x 1GbE Ethernet ports |
| Internal Ports | 1 x USB 3.2 Gen 1 port |
-
Specifications and Images may vary depending upon region / model.
Key Features
- Compact 3U tower server for small business, branch office and near-edge applications
- Intel Xeon 6 Performance 6315P processor
- 4 processor cores and 4 threads with Turbo support
- 16 GB 5600 MHz ECC DDR5 UDIMM memory
- 2 TB 7,200 RPM enterprise SATA hard drive
- Chassis supports 3 x 3.5-inch and 2 x 2.5-inch cabled drives
- Embedded SATA storage with no dedicated RAID controller
- Broadcom 5720 dual-port 1GbE onboard networking
- iDRAC9 Enterprise for secure remote administration
- Trusted Platform Module 2.0 and Secured Component Verification
- 300 W cabled power supply
- 3-years Basic Next Business Day warranty
Features
Compact Enterprise Server for Small Business and Near-Edge Workloads
The Dell PowerEdge T160 is a compact, single-socket tower server designed for small businesses, branch offices and near-edge deployments that require dependable performance without a traditional server room. Its space-saving 3U chassis combines enterprise-class management and security with an office-friendly tower design.
This Smart Selection configuration includes an Intel Xeon 6 Performance 6315P processor, 16 GB of ECC DDR5 memory, a 2 TB enterprise SATA hard drive, embedded SATA storage support, Broadcom dual-port Gigabit Ethernet and iDRAC9 Enterprise remote management.
Efficient Intel Xeon Processing
The Intel Xeon 6 Performance 6315P processor delivers four cores and four threads at a 2.8 GHz base frequency, with Turbo support and 12 MB cache. It is suited to file services, collaboration, messaging, lightweight database workloads and essential business applications.
ECC DDR5 Memory and Flexible Storage
The system includes one 16 GB ECC DDR5 UDIMM operating at 5600 MHz. Four memory slots provide room for future expansion, while the chassis accommodates three 3.5-inch cabled drives and two additional 2.5-inch cabled drives. The installed 2 TB 7,200 RPM SATA hard drive provides dependable capacity for operating systems, applications and business data.
Enterprise Management and Security
iDRAC9 Enterprise enables secure out-of-band monitoring, deployment and lifecycle management. Trusted Platform Module 2.0, Secured Component Verification, Secure Boot, cryptographically signed firmware and Silicon Root of Trust help protect the server throughout its lifecycle.
